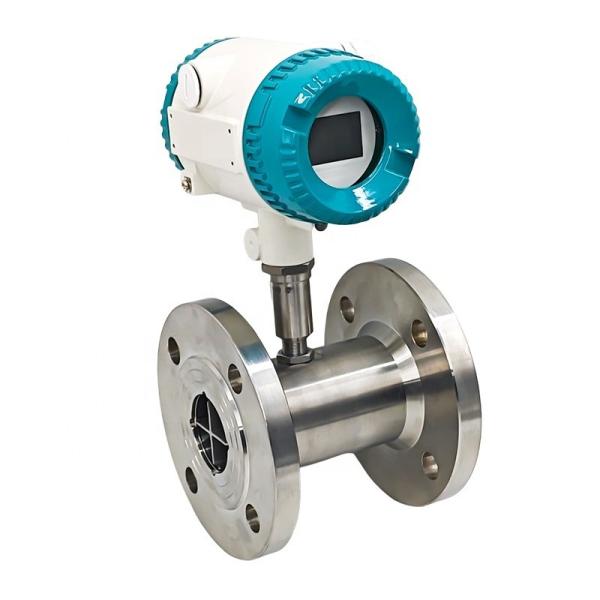

Intelligent Turbine Flowmeters Carbon Steel High Precision With Flange

Brand Name : XINYIYB

Place of Origin : China

MOQ : 1PC

Payment Terms : L/C,D/A,D/P,T/T,Western Union

Supply Ability : 100PCS/Month

Delivery Time : 5-8 work days

Packaging Details : Carton

Product Name : Liquid Turbine Flowmeter

Material : Carbon Steel

customized support : OEM, ODM, OBM

model number : DN10-DN1600

type : Variable Area Water Flowmeters

Display : LCD Digital

Power supply : 24VDC

Accuracy : 0.5%FS

Medium : Conductive Liquid

Output signal : 4~20mA / RS485/HART

Communication : RS485/Modbus/HART

Application : Measuring Liquids

Contact Now

Intelligent Vortex Flowmeter With Flange Compressed Air Nitrogen Steam Gas, Liquid High Precision

High precision, generally up to ± 1% R, ± 0.5% R, and high-precision models up to ± 0.2% R; Good repeatability, such as frequent calibration or online calibration, can achieve extremely high accuracy, and is the preferred flow meter in trade settlement; N has three point correction for instrument coefficients, intelligent compensation for instrument coefficient nonlinearity, and can be corrected on site; Keep all valid data for 10 years after power failure; Wide range, with medium to large diameters up to 1:20 and small diameters up to 1:10;


Specification

Executive standard

Vortex flow sensor

Nominal diameter (mm)

15,25,40,50,65,80,100,125,150,200,250,300,(200～1000Plug-in)

Nominal pressure (MPa)

1.6MPa,2.5Mpa,4.0Mpa(Others can be customized)

Output signal function

Pulse signal,4-20mA

Communication output function

RS485 communication output, HART protocol, etc.

Accuracy

Pipeline type: liquid ±1%; gas or steam ±1.5%, ±1%

Plug-in type: liquid ±2%; gas or steam ±2.5%

Measuring range

1:10；1:15；1:20

Output signal

Square wave pulse (not including battery-powered type): high level≥5V, low level≤1V; current: 4～20mA

Pressure loss coefficient

Comply with JB/T9249 standard Cd≤2.4

Explosion-proof mark

Intrinsically safe type: ExiaⅡ CT2-T5, flameproof type: ExdⅡCT2-T5

Protection level

IP65 or higher

Applicable medium

Gas, liquid, steam

Transmission distance

Three-wire pulse output type: ≤300m, two-wire standard current output type (4～20mA): load resistance ≤750Ω

Intelligent Turbine Flowmeters Carbon Steel High Precision With Flange

Intelligent Turbine Flowmeters Carbon Steel High Precision With Flange
