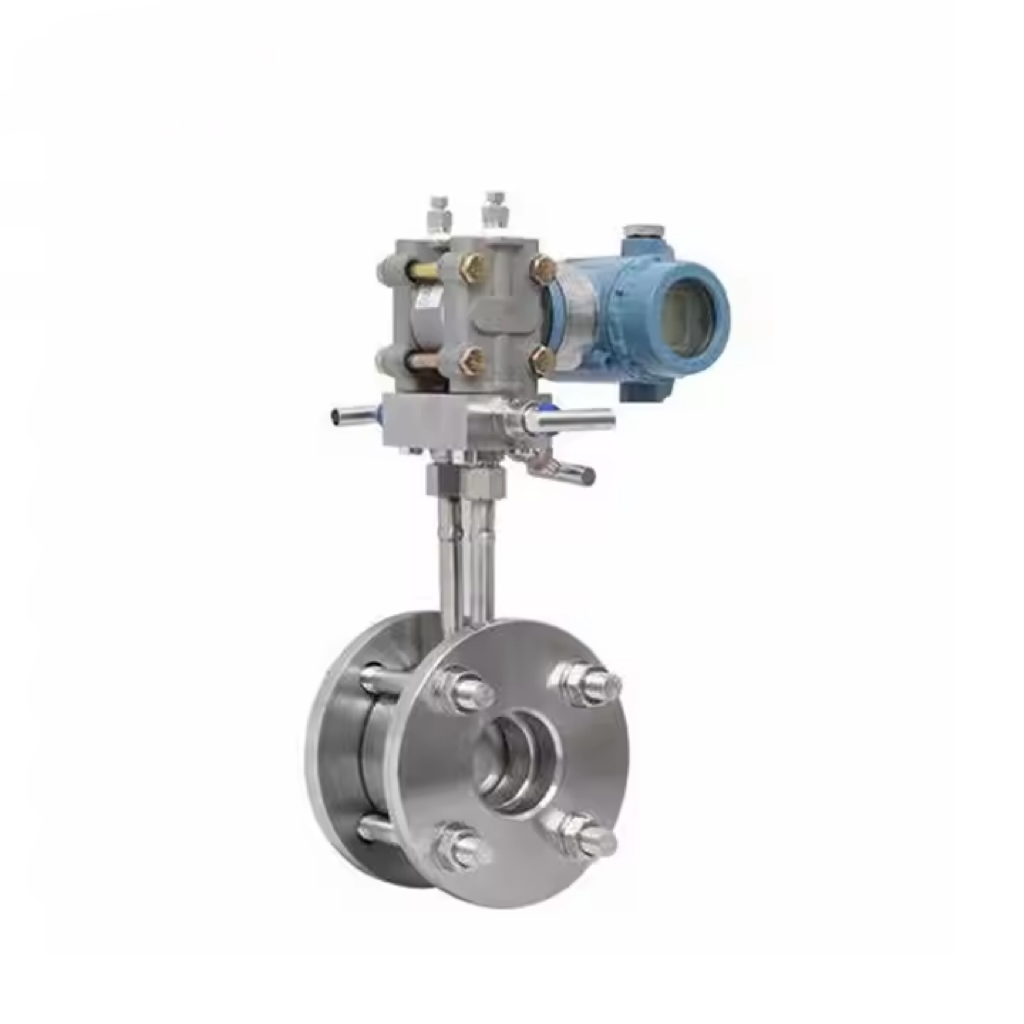

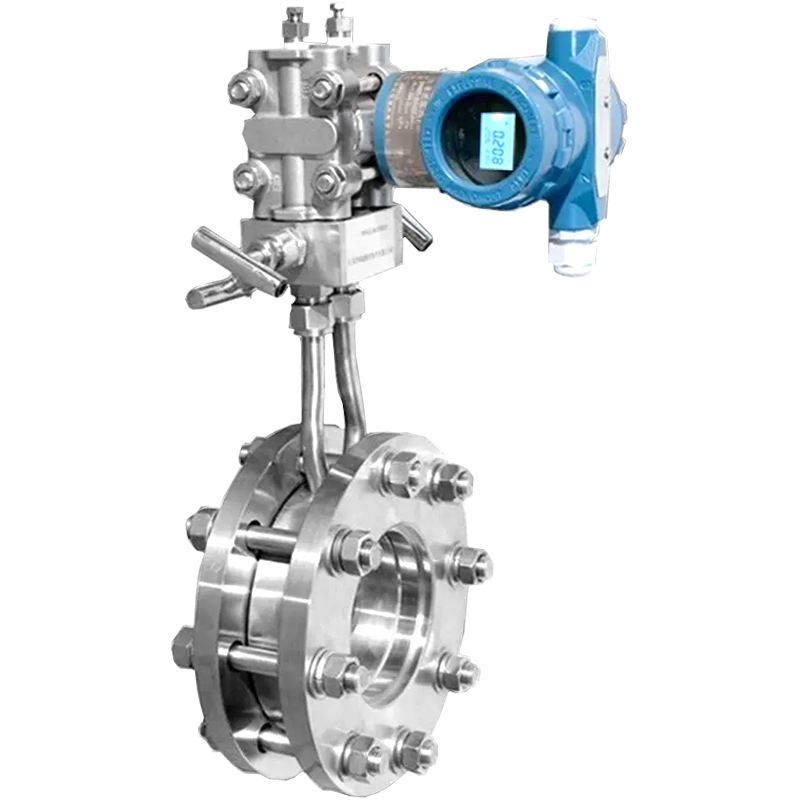

Integrated Orifice Flow Meter Orifice Throttling Device Balance Flow Meter Steam Flow Meter
Product Features
• High precision, generally up to ± 0.5% R and ± 1.0% R (R refers to reading error);
• Good repeatability, short-term repeatability can reach 0.2% to 0.05%, and high accuracy can be achieved through regular calibration or online calibration;
• Output pulse frequency signal, suitable for total measurement and computer connection, no zero drift, strong anti-interference ability;
• The original pulse frequency range (10.0Hz ~1.5kHz) has strong signal resolution;
• Wide range ratio, generally 1:10, up to 1:15;
• Compact and lightweight structure, easy installation and maintenance, and high circulation capacity;
• Suitable for high voltage measurement, the sensor body does not need to be perforated and is easy to make into a high voltage type instrument;
• Strong resistance to electromagnetic interference and vibration;
• Low pressure loss, saving power consumption.
Specification
| Product Name | Differential Pressure Flowmeter |
| Warranty | 12 months |
| Customized support | OEM,ODM,OBM |
| Place of Origin | Shaanxi,China |
| Brand Name | XINYIYB |
| Model Number | XYOM-XXX |
| Accuracy | 1.5%, 1% (customized) |
| Mouth diameter | DN50 ~ DN1000 |
| Withstand voltage range | PN≤42Mpa |
| medium temperature | -30℃~+400℃ -30℃~+550 (specially made) |
| environmental conditions | Ambient temperature: -30℃~+60℃Relative humidity: 5%~90%Atmospheric pressure: 80kpa~106kpa |
| working power supply | 220VAC,24VDC |
