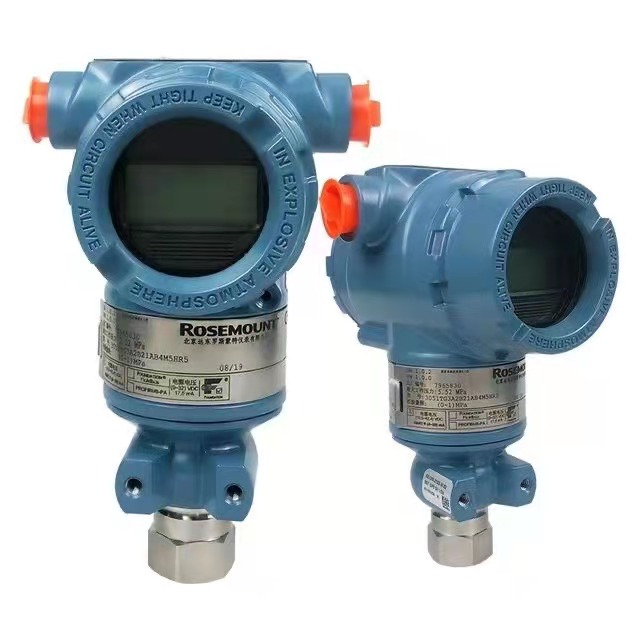

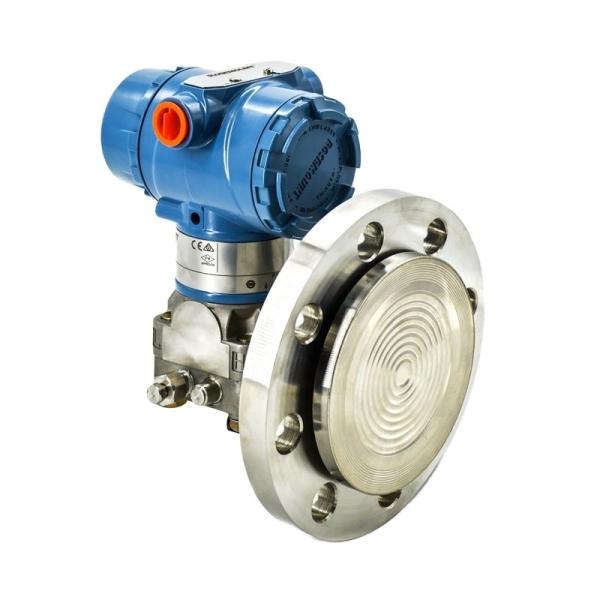

Rosemont 3051 Absolute Pressure Transmitter Hydraulic Relative Pressure Sensor with Flange

Brand Name : Rosemount

Model Number : 3051CD

Place of Origin : Singapore

MOQ : 1 Piece

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability : 3000 Piece/Pieces per Month

Packaging Details : Carton Packing

Warranty : 1 Years

Material : Stainless steel

Product name : 3051 Pressure Transmitter

Output : 4-20ma

Pressure type : Gauge Pressure Absolute Pressure Sealed Pressure

Accuracy : 0.5%FS

Supply voltage : DC 24V(12V~32V)

Protection level : IP 65

Usage : Industrial Usage

Pressure range : -0.1....0~0.01... ~100MPa

Application : Wide application range

Quality : High Quality

Contact Now

Rosemont 3051 Absolute Pressure Transmitter Hydraulic Relative Pressure Sensor with Flange
Pressure Transmitter The differential pressure transmitter is suitable to measure liquid, gas, or steam flow as well as liquid level, density and pressure. Outputs a 4~20mADC signal corresponding to the measured differential pressure. Its highly accurate and stable sensor can also measure the static pressure which can be shown on the integral indicator or remotely monitored via HART communications. Other key features include quick response, remote set-up using communications, self-diagnostics and optional status output for pressure high/low alarm.
Specification:
Proof pressure
≤1.5X rated pressure or 110MPa which ever is less
Pressure type
Gauge, absolute ,sealed gauge
Power Supply Effects
±0.001% /10V (12~42V DC)
Static Pressure Effects
±(0.05%URL+0.075%Span)/10MPa
Operating Temperature Range
-20℃~80℃
Storage Temperature Range
-40℃~120℃
Power supply
15～30VDC
Output signal
4～20mA 0～10/20mA 0/1～5VDC
Working Pressure Limits
Maximum working pressure: 16MPa,25MPa,40MPa
Sensor Body
316L stainless steel
UpTime
< 15s
Process Connection
Flange with fixing thread 7/16-20 UNF and 1/4-18 NPT female thread on both sides
Insulation resistance
100MΩ,100VDC
Protection
IP65
Rosemont 3051 Absolute Pressure Transmitter Hydraulic Relative Pressure Sensor with Flange

Rosemont 3051 Absolute Pressure Transmitter Hydraulic Relative Pressure Sensor with Flange

Rosemont 3051 Absolute Pressure Transmitter Hydraulic Relative Pressure Sensor with Flange
