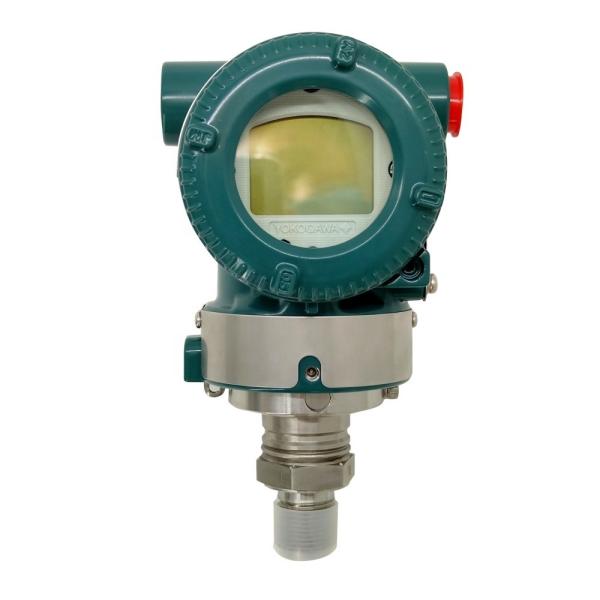

EJA 110 E Pressure Sensor Direct Connected Pressure Transmitter

warranty : 2 Years

customized support : OEM, ODM, OBM

place of origin : Shaanxi, China

brand name : XINYIYB

model number : EJA 110e

Product name : Pressure Transmitter

Shell protection : IP65

Overload pressure : 200%F.S

Full load power : 2W

Response time : ≤50MS

Process connection : Threaded, flanged connection

output signal : 4-20mA RS485

Linearity : 0.03%

Measuring medium : oil water gas

Application : Multipurpose

Packaging Details : Carton Packaging

Port : Shanghai Port

Supply Ability : 3000 Piece/Pieces per Month

Price : CN¥3,652.30-5,113.22/pieces

Contact Now

Product Description
Pressure Transmitter EJA110E high-performance pressure transmitter using monocrystalline silicon resonant sensor technology, suitable for measuring the liquid, gas or steam flow, liquid level, density and pressure. EJA110E will measure differential pressure into 4 ~ 20 ma DC current signal output, can measure, display or remote monitoring static pressure, have fast response, remote set, since the diagnosis, etc.
EJA 110 E Pressure Sensor Direct Connected Pressure Transmitter
EJA 110 E Pressure Sensor Direct Connected Pressure Transmitter
EJA 110 E Pressure Sensor Direct Connected Pressure Transmitter
EJA 110 E Pressure Sensor Direct Connected Pressure Transmitter
Specification:
Model Number
EJA110E
The Environment Temperature
-40-85℃
The Process Temperature
-40-120℃
Environmental Humidity
0-100%
The Response Time
90ms
The Output Signal
4-20mA+HART
The Power Supply Voltage
10.5-42V
Accuracy
+/-0.075%, +/-0.1%
Wetted parts material
SS316L, Hastelloy C, Tantalum
Ambient temperature
-40~85℃
-20~65℃ (with LCD display, fluorine rubber O-ring)
Protection grade
IP67
Process connection
1/4NPT(F) , 7/16 female on the cover flanges or other optional
Weight
about 5 KG
Ordering Note
1. Media must compatible with wetted part. 2. To ensure the products can working reliable, we suggest that customer install lightning protection device and make sure products & power are earthed. 3. Special requirement ,such as strong shock, moment vibration, strong electromagnetism, radio frequency interference ,please consult us. Warranty:Pressure transmitters have a limited one-year warranty to the original purchaser. We will replace or repair defective products free of charge. This warranty does not apply to any units have been modified, misused, neglected.
EJA 110 E Pressure Sensor Direct Connected Pressure Transmitter
Company Profile
EJA 110 E Pressure Sensor Direct Connected Pressure Transmitter
EJA 110 E Pressure Sensor Direct Connected Pressure Transmitter
Certifications
EJA 110 E Pressure Sensor Direct Connected Pressure Transmitter
FAQ
1. WHO ARE WE? We are based in Shaanxi, China, start from 2017,sell to Domestic Market(25.00%),Northern Europe(15.00%),Mid East(15.00%),Africa(10.00%),Southeast Asia(10.00%),North America(5.00%),Eastern Europe(5.00%),Southern Europe(5.00%),Western Europe(5.00%),South America(5.00%). There are total about 11-50 people in our office. 2. HOW CAN WE GUARANTEE QUALITY? Always a pre-production sample before mass production; Always final Inspection before shipment. 3.WHAT CAN YOU BUY FROM US? Pressure transmitter,Digital manometer,Ultrasonic level gauge,Pressure gauge verifier,Input level gauge. 4. WHY SHOULD YOU BUY FROM US NOT FROM OTHER SUPPLIERS? Xinyi technology has a strong r & D team, perfect service system, exquisite sales team. The company has always been adhering to the "price first, quality-oriented, user-oriented" purpose, truly achieve the "quality first, customer first" all the company's. 5. WHAT SERVICES CAN WE PROVIDE? Accepted Delivery Terms: FOB,CIF； Accepted Payment Currency:null; Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash.
