Yokogawa EJA310E Series Pressure Transmitter Brand New Absolute Pressure Gauge Pressure Transmitter

warranty : 1 year

customized support : OEM, ODM, OBM

place of origin : Shaanxi, China

brand name : yokogawa

model number : EJA310E

type : pressure transmitter

material : SS316

Product Name : Differential Pressure Transmitter

Output signal : 4-20mA+HART

Measuring range : 0.67~10(kPa)

Accuracy : ±0.15%

Protection grade : IP67/68

Supply voltage : 1~5(V)

interface size : 1/2 NPT internal thread

Measurement medium : Liquid, gas, or vapor

Price : CN¥3,506.21-3,798.40/pieces

Supply Ability : 3000 Piece/Pieces per Month

Contact Now

Product Description

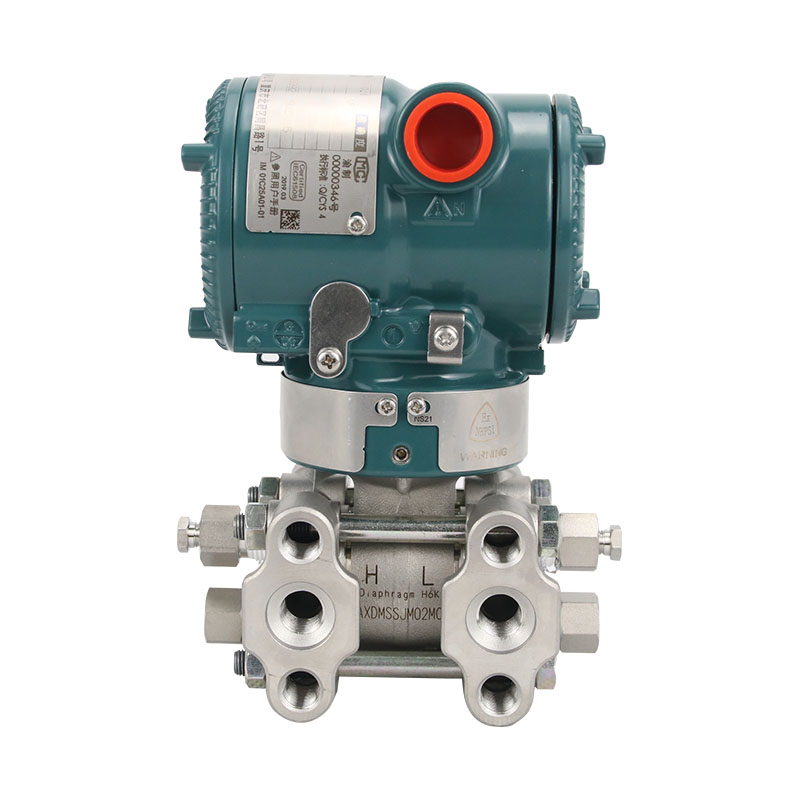

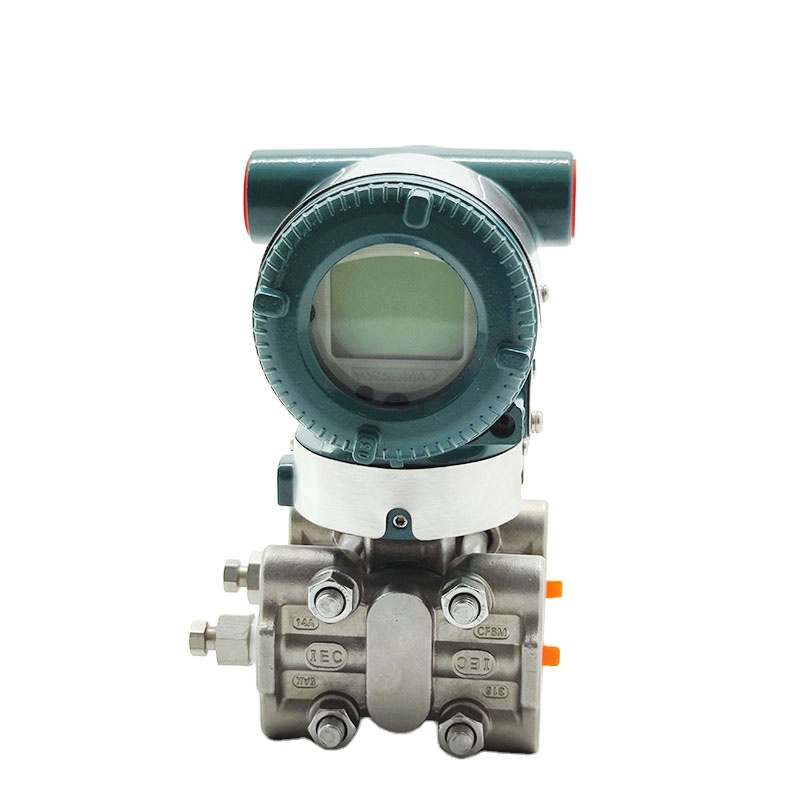

Yokogawa EJA310E high-performance absolute pressure transmitter

It adopts Yokogawa's advanced monocrystalline silicon resonant sensing technology, which is very suitable for measuring flow, liquid level, density, and pressure of liquids, gases, or vapors. Its performance and reliability have been enhanced, with built-in security certification. Its small shape coefficient and sturdy material meet the stability requirements of Yokogawa Electric's products. The working principle of the Yokogawa EJA310E high-performance absolute pressure transmitter is to convert the measured pressure into a 4-20mA DC current signal output, which can measure, display, or remotely monitor static pressure. It has functions such as fast response, remote setting, and self diagnosis. The EJA-E series supports BRAIN, HART/HART (1-5V) low power consumption, and FOUNDATION ™ Fieldbus or PROFIBUS PA communication protocol.

Specification

item	value
Warranty	1 year
Customized support	OEM, ODM, OBM
Place of Origin	China
Brand Name	yokogawa
Model Number	EJA310E
Product Name	Differential Pressure Transmitter
Output signal	4-20mA+HART
Measuring range	0.67~10(kPa)
Accuracy	±0.15%
Protection grade	IP67/68
Supply voltage	1~5(V)
interface size	1/2 NPT internal thread
Measurement medium	Liquid, gas, or vapor

Better performance and stability Yokogawa transmitter is a pressure measurement equipment used in Yokogawa's entire industrial process automation control and management system. If you need to purchase EJA transmitters, then you must be purchasing pressure series transmitters. Under the pressure transmitter, it is further divided into differential pressure, absolute pressure, and static pressure or basic pressure. Among these pressure measurement devices, Yokogawa has introduced targeted models for different pressure measurements, such as EJA110A for differential pressure, EJA120A for micro differential pressure, and EJA310A for absolute pressure.

Yokogawa transmitters are used to measure the pressure of gases, liquids, and vapors, converting physical measurement signals or ordinary electrical signals into standard electrical signals for output or devices that can be output through communication protocols. Principle: It uses monocrystalline silicon vibration sensor technology to compress the metal membranes at the high and low pressure ends, and then transmit them to the upper and lower sides of the monocrystalline silicon wafer through sealing fluid. By applying a magnetic field to the oscillator through a permanent magnet, one half of the oscillator and the remaining half form an excitation circuit. The natural frequency of the circuit is measured, and the difference between this natural frequency and the natural frequency of another oscillator is converted into a differential pressure signal. Convert the differential pressure signal into pulse or digital signal output, and directly convert the pressure signal into digital signal processing.
