ABB 266DSH 266 MSH 266MST LCD Display 4-20ma Hart Wireless Differential Pressure Transmitters

warranty : 2 Years

customized support : OEM, ODM, OBM

place of origin : Shaanxi, China

brand name : ABB

model number : 266DSH/MSH/MST

Product Name : Pressure Transmitter

Pressure type : Differential Pressure

Output signal : 4-20mA+HART

Accuracy : 0.06%FS

Power supply : 12~36VDC

Pressure range : 0~41Mpa (option)

Material : 304/316 Stainless Steel

Operating Temperature : Standard Temperature

Condition : 100% Orinigal

Application : Pressure Measurement

Packaging Details : Carton Box

Supply Ability : 3000 Piece/Pieces per Month

Price : CN¥3,645.00-4,740.69/pieces

Contact Now

Product Description

ABB Differential Pressure Transmitter

266DSH supports the wireless WirelessHART communication protocol, which can obtain more information besides pressure measurement values. Now you can monitor measuring points that are difficult for employees to reach, ensuring their personal safety. The 266 wireless pressure transmitter has a battery life of 10 years at an update rate of 32 seconds, providing customers with a low-cost, reliable measurement solution.

Features:
1. High precision, long-term stability, the use of reliable
2. All transmitter basic accuracy levels are 0.075%, and can provide 0.04% high precision optional; maximum range than 100: 1.
3. Reliable operation, stable performance, long-term drift less than 0.03% / year. 5 years free maintenance.
4. From the signal conversion, calculation, output, to the field settings, debugging, display all the digital chip design, can provide: the use of open HART protocol, the Communicator can be set locally.

Specification

Product name	ABB266 Differential Pressure Transmitter
Model	ABB266
Base accuracy	from ±0.06%
Span limits	0.54 to 60000kpa
stability	Full scale drift <0.15%/10 years
MWP	42Mpa
Process temperature	-40... 80 °C
Application	liquid, gas or steam flow
Fill fluid (wetted parts)	Silicone oil
Diaphragm material	AISI 316 L ss，Hastelloy® C-276
protection rating	IP68
output	HART®, PROFIBUS PA, FOUNDATION Fieldbus and WirelessHART
Housing material	Aluminium Stainless steel

Details Images

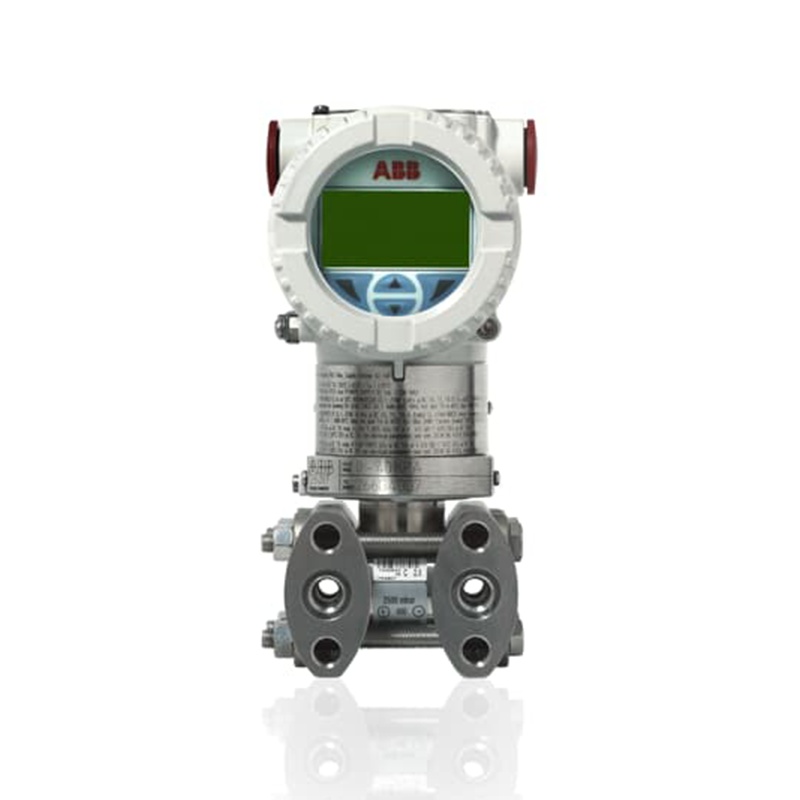

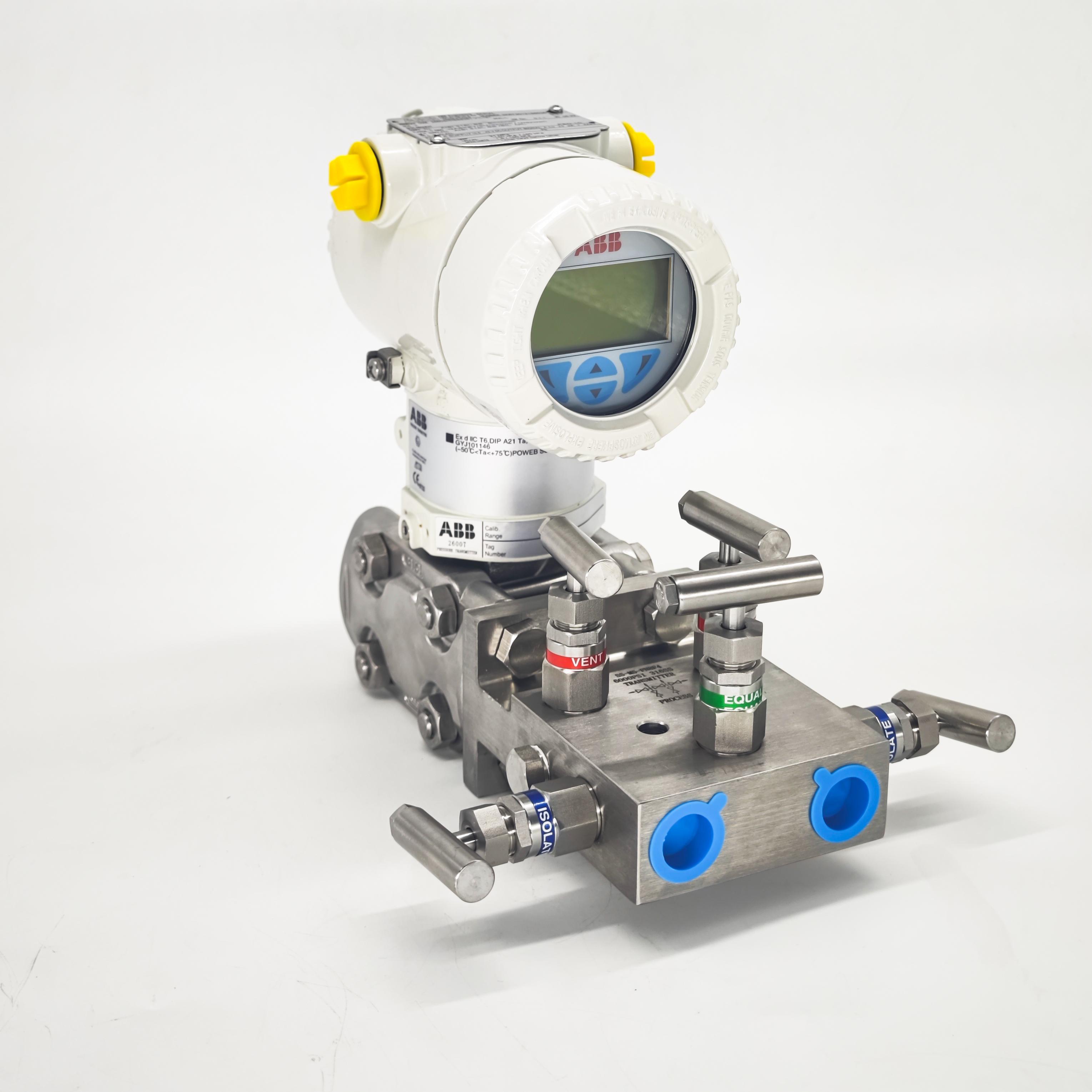

ABB 266DSH 266 MSH 266MST LCD Display 4-20ma Hart Wireless Differential Pressure Transmitters
