Smart Differential Pressure Transmitter 4-20MA Yokogawa Transmitter EJA110E With LCD Display

Packaging Details : Carton packaging

Supply Ability : 3000 Piece/Pieces per Month

Price : CN¥4,017.53/pieces 1-9 pieces

Product name : Yokogawa Transmitter EJA110E

warranty : 2 Years

customized support : OEM, ODM, OBM

place of origin : Shaanxi, China

brand name : XINYIYB

model number : Yokogawa

Output : 4-20ma

Pressure type : Differential Pressure

Accuracy : 0.5%FS

Power supply : 24VDC 12VDC 5VDC 8-30VDC

Material : Stainless Steel

Pressure range : 0.1MPa~0kPa~10KPa~100MPa

Condition : Original 100%

MOQ : 1 Piece

Application : Water Oil Air Pressure Measurement

Port : shanghai port

Contact Now

YOKOGAWA Differential Pressure Transmitter EJA110E Smart LCD Display 4-20mA Pressure Transmitter

Product Description
Yokogawa Pressure Transmitter
Features: 1-- Excellent performance and stability The EJA series uses a formed from monocrystal silicon, a perfect material which has no hysteresis in pressure or temperature changes. The sensor minimizes overpressure, temperature change, and static pressure effects, and thus offers unmatched long-term stability. 2-- Compact and light-weight design Half the weight of conventional models thanks to miniaturization of the casing with the amplifier ASIC, pressure cell structure, and flange. The ASIC uses the minimum number of parts and improves the reliability of the amplifier. 3-- Fieldbus communication capability Fieldbus is a digital two-way communication system. It is a revolutionary technology for configuring instrumentation control systems and a promising successor to the standard 4 to 20 mA analog communication used in most field instruments today. EJA series offers two types of fieldbus models, FOUNDATION fieldbus Low Voltage Mode and PROFIBUS PA devices, which ensure interoperability between and other manufactures. As for software, the EJA series incorporates two AI function blocks that compute differential and static pressures to allow flexible configuration of instrumentation.
Specification
Range
-0.1...0~0.01...100MPa
Type of pressure
Gauge (G), absolute (A), sealed gauge (S)
Accuracy
±0.5%FS, ±0.25%FS
Output signal
4-20mA 1-5V/0-5V 0.5~4.5V 0~10V 100mv
Power supply
10-30V 5V
Overload
150%FS
Long term stability
±0.2%FS/ year
Material
Housing: 304 stainless steel Sensor: 316L stainless steel
Pressure connector
M20×1.5, G1/2, G1/4, NPT1/2, etc. (customized)
Electrical connection
cable connection, DIN43650 , plug connection,parked
Ingress protection
IP65-IP68(OEM)
Explosion proof
Intrinsically safe explosion proof ExiaⅡCT6
Operating temp.
-30~80℃
Details Images

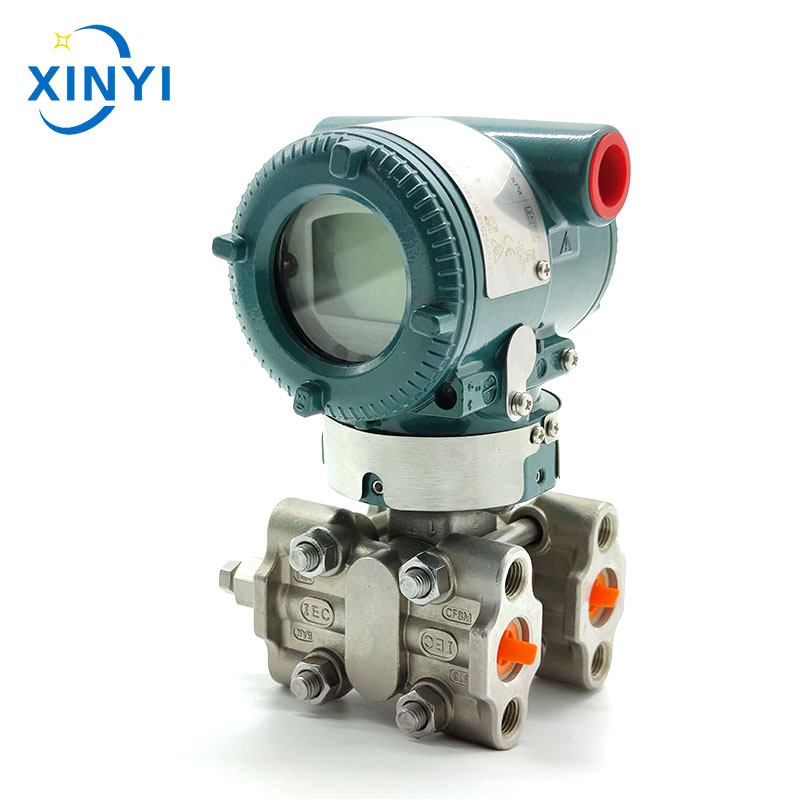

Smart Differential Pressure Transmitter 4-20MA Yokogawa Transmitter EJA110E With LCD Display

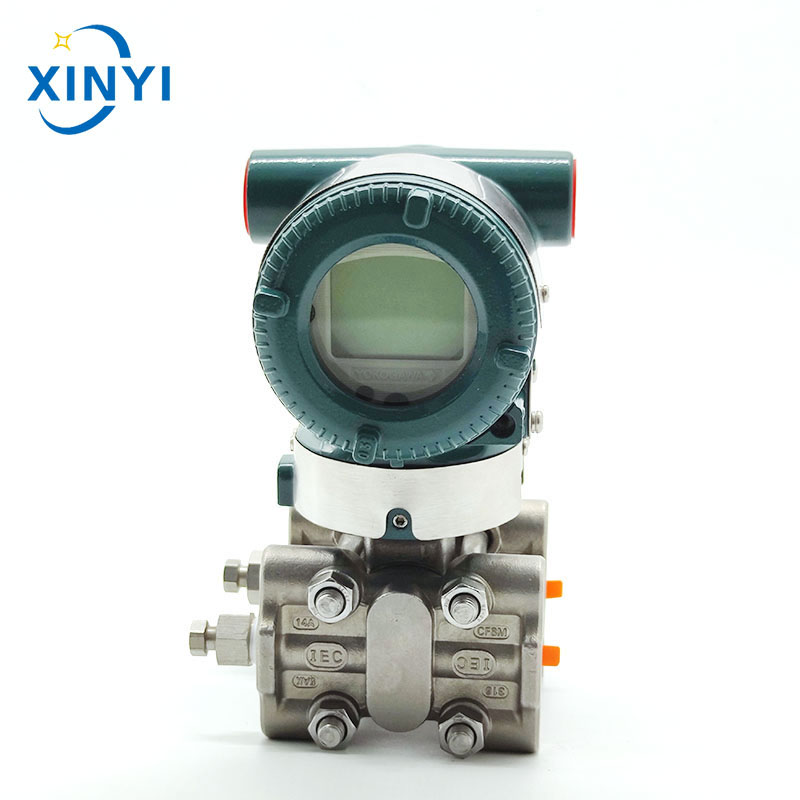

Smart Differential Pressure Transmitter 4-20MA Yokogawa Transmitter EJA110E With LCD Display
Smart Differential Pressure Transmitter 4-20MA Yokogawa Transmitter EJA110E With LCD Display
Packing & Delivery
Smart Differential Pressure Transmitter 4-20MA Yokogawa Transmitter EJA110E With LCD Display
Smart Differential Pressure Transmitter 4-20MA Yokogawa Transmitter EJA110E With LCD Display
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Smart Differential Pressure Transmitter 4-20MA Yokogawa Transmitter EJA110E With LCD Display
Company Profile
Smart Differential Pressure Transmitter 4-20MA Yokogawa Transmitter EJA110E With LCD Display
Certifications
Smart Differential Pressure Transmitter 4-20MA Yokogawa Transmitter EJA110E With LCD Display
FAQ
1. WHO ARE WE? We are based in Shaanxi, China, start from 2017,sell to Domestic Market(25.00%),Northern Europe(15.00%),Mid East(15.00%),Africa(10.00%),Southeast Asia(10.00%),North America(5.00%),Eastern Europe(5.00%),Southern Europe(5.00%),Western Europe(5.00%),South America(5.00%). There are total about 11-50 people in our office. 2. HOW CAN WE GUARANTEE QUALITY? Always a pre-production sample before mass production; Always final Inspection before shipment. 3.WHAT CAN YOU BUY FROM US? Pressure transmitter,Digital manometer,Ultrasonic level gauge,Pressure gauge verifier,Input level gauge. 4. WHY SHOULD YOU BUY FROM US NOT FROM OTHER SUPPLIERS? Xinyi technology has a strong r & D team, perfect service system, exquisite sales team. The company has always been adhering to the "price first, quality-oriented, user-oriented" purpose, truly achieve the "quality first, customer first" all the company's. 5. WHAT SERVICES CAN WE PROVIDE? Accepted Delivery Terms: FOB,CIF； Accepted Payment Currency:null; Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash.
