Brand Name : XINYI
Model Number : YW-130
Certification : CE
Place of Origin : China
MOQ : 1
Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability : 1000pcs/month
Delivery Time : 5-8 work days
Packaging Details : carton
Product Name : Air Pressure Transmitter 4-20ma
customized support : OEM, ODM, OBM
material : SS
accuracy : 0.5%
Output signal : 4~20mA
Accuracy : 0.5%FS
Power supply : 24VDC
Pressure connection : M20*1.5 G1/4 (or Others)
Display : 4-digit LED
Material : Stainless Steel Case
Application : Pressure Measurement
Condition : 100% Orinigal
YW-130 LED Rod Shaped Band Display Pressure Transmitter Hydraulic Oil Pressure Air pressure
The on-site display pressure transmitter is produced using internationally advanced piezoresistive sensing technology, and different sensing cores can be selected according to the application. It is fully stainless steel packaged and equipped with high-precision LED digital display instruments, suitable for most media, with good long-term stability, multiple signal outputs to choose from, and can be used in various environments and climates. Therefore, it is widely used in various fields.
Power supply | 24VDC |
Measuring range | -1~0~600Bar (customized) |
Output signal | 4-20mA (2 wire), 0.5-4.5V; 0-5V; 1-5V; 0-10V (3 wire), I2C (digital signal) |
Supply voltage | 12~36(24)VDC |
Operating temperature | -20~85℃ |
Compensation temperature | -20~80℃ |
Operating current | ≤3mA |
Response time | ≤3m/s |
Overload pressure | 150%FS |
Burst pressure | 300%FS |
![]() |

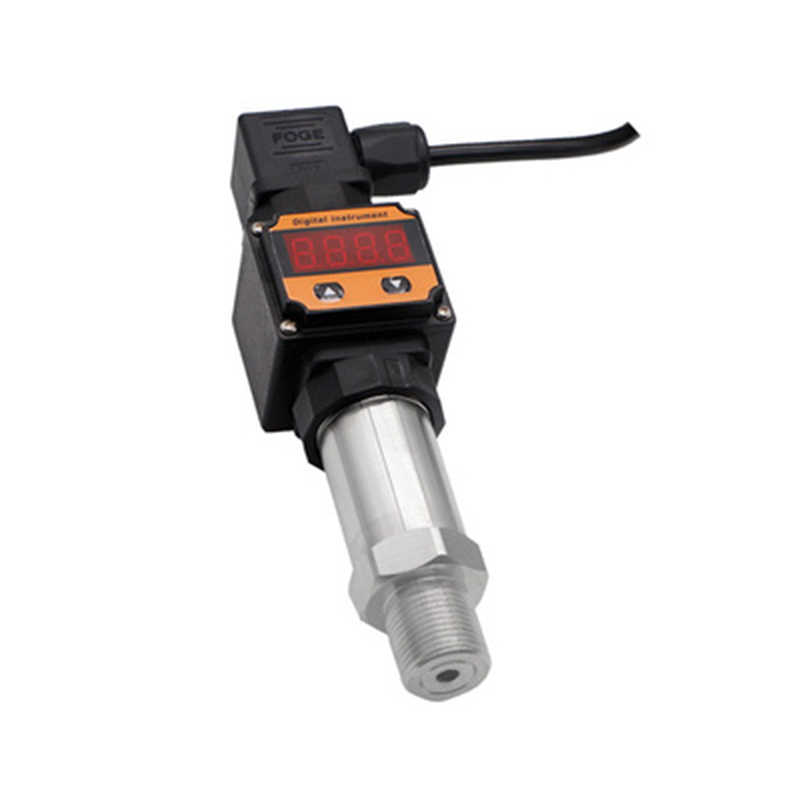

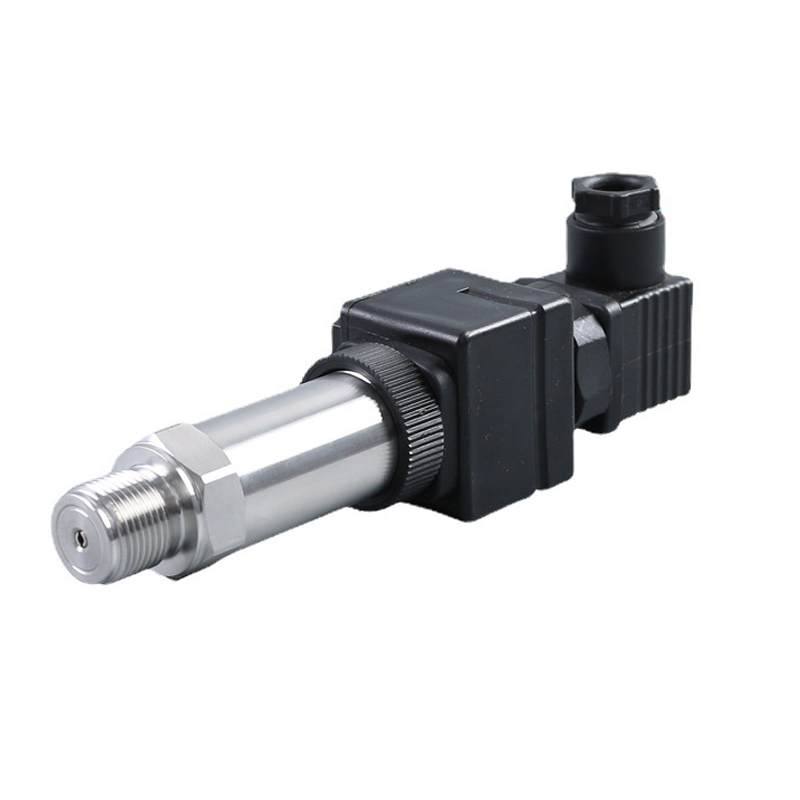

Air Pressure Transmitter 4-20ma YW-130 LED Rod Shaped Display Pressure Transmitter Images |
