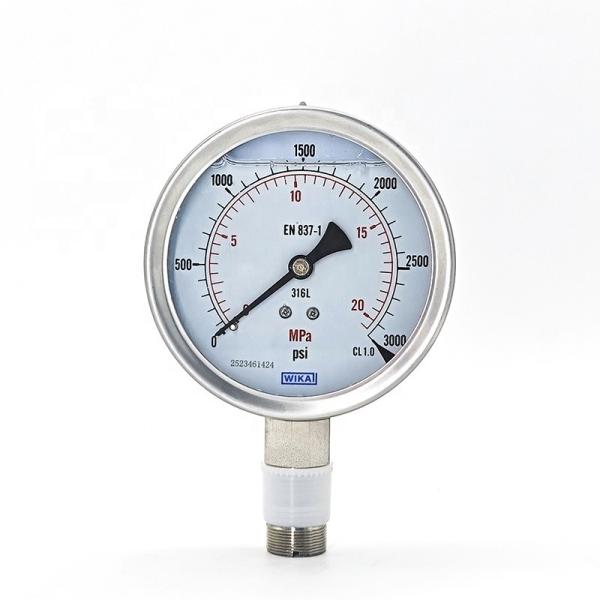

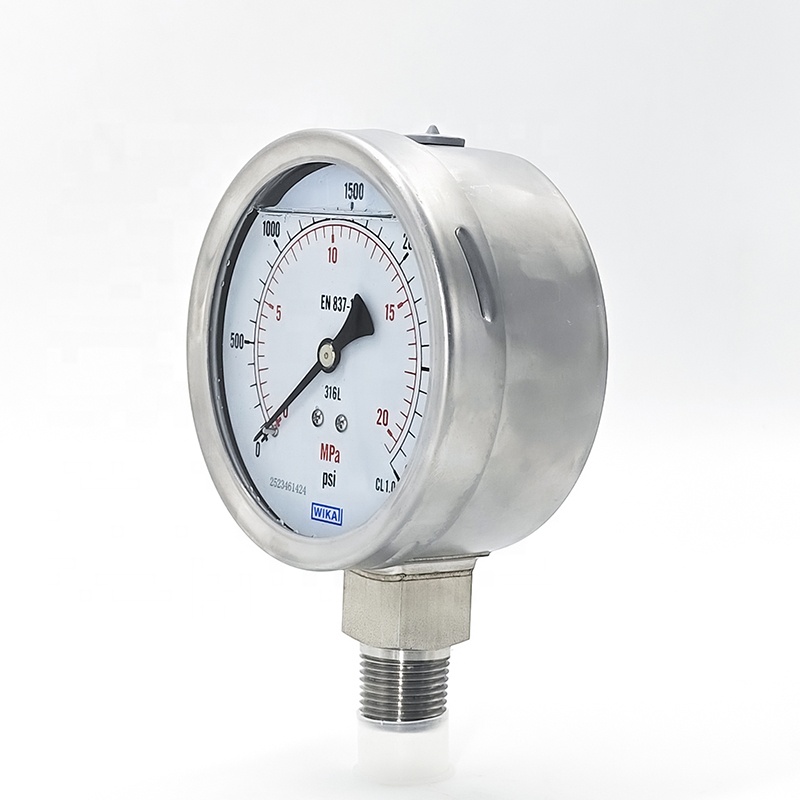

Wika Bourdon Tube Pressure Gauge SS316 232.50 Pressure Gauge 0-1000 Psi OBM Support

Price : CN¥219.14-416.37/sets

Name : Wika Bourdon Tube Pressure Gauge

customized support : OEM, ODM, OBM

brand name : WIKA

model number : 232.50

type : Bourdon Tube Pressure Gauges

material : SS316

size : 63mm/100mm/160mm

weight : 1kg

Product Name : Bourdon Tube Pressure Gauge

Model : 232.50

Measuring range : 0~1000PSI

Thread : M20*1.5 G1/2 M14*1.5 NPT1/4

place of origin : Shaanxi, China

Size : 63 / 100 /160 mm

Accuracy : cL 1.0

Ambient temperature : -40 - (+60 °C)

Unit : bar/ psi/ kg/cm²/ kPa/ MPa

Contact Now

Wika Bourdon Tube Pressure Gauge 232.50 Series Stainless Steel Pressure Gauge Measuring Range 0-1000PSI With OBM Support

Product Description

This high-quality Bourdon tube pressure gauge has been designed especially for the process industry.The use of high-quality stainless steel materials and the robust design are geared to applications in the chemical and process engineering industries.Thus the instrument is suitable for liquid and gaseous media, also in aggressive environments.

Wika Bourdon Tube Pressure Gauge SS316 232.50 Pressure Gauge 0-1000 Psi OBM Support

Specification

item	value
Type	Bourdon Tube Pressure Gauges
Place of Origin	China
	Shaanxi
Warranty	1 Year
Customized support	OEM, ODM, OBM
Brand Name	WIKA
Model Number	232.50
Material	SS316
Size	63mm/100mm/160mm
Weight	1kg
Product Name	Bourdon Tube Pressure Gauge
Model	232.50
Measuring range	0~1000PSI
Thread	M201.5 G1/2 M141.5 NPT1/4
Size	63 / 100 /160 mm
Accuracy	cL 1.0
Ambient temperature	-40 - (+60 °C)
Unit	bar/ psi/ kg/cm²/ kPa/ MPa

Applications

■ For gaseous and liquid aggressive media that are not highly viscous or crystallising, also in aggressive environments

■ Chemical and petrochemical industries, oil and gas industry, power engineering and also water and wastewater technology

■ Machine building and general plant construction

Special features

■ Excellent load cycle stability and shock resistance

■ With case filling (model 233.50) for applications with high dynamic pressure loads and vibrations

■ Completely from stainless steel

■ Scale ranges from 0 … 0.6 to 0 … 1,600 bar or 0 ... 10 to 0 ...20,000 psi

■ QR code on dial links to instrument-specific information
