0.05 Precision Digital Pressure Gauge SS316 Digital Absolute Pressure Gauge 100mm

Name: 005 Precision Digital Pressure Gauge SS316 Digital Absolute Pressure Gauge 100mm
Brand: XINYIYB
Price: 1 USD

0.05 Precision Digital Pressure Gauge SS316 Digital Absolute Pressure Gauge 100mm Manufactures

Brand Name : XINYIYB

Model Number : YB-150

Place of Origin : China

MOQ : 1 set

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability : 1000pcs/month

Delivery Time : 5-8 work days

Packaging Details : carton 10*10*5cm

type : Precision Digital Pressure Gauge

warranty : 2 years

customized support : OEM, ODM, OBM

place of origin : Shaanxi, China

brand name : XINYIYBPrecision Digital Pressure Gauge

model number : YB-150

material : SS316

size : 100mm

weight : 1 kg

Product Name : Pressure Gauge

Connection : 1/2'' NPT/1/4"NPT 3/8"NPT BSP

Pressure range : 0-0.1-60Mpa

Accuracy : 0.4%/0.25%

Nominal diameter : 150 mm

Ambient temperature : -40-70(℃)

Application : Pressure Measurement

Contact Now

0.05 Precision Digital Pressure Gauge With Absolute Pressure Measurement 0-0.1-60Mpa Pressure Range And SS316 Material

Pressure gauge refers to the elastic element as the sensitive element, measuring and indicating the pressure above the environment of the instrument, the application is very common, it is almost all industrial processes and scientific research fields. It can be seen everywhere in the fields of heat pipe network, oil and gas transmission, water supply and gas system, vehicle repair and maintenance factories and shops. Especially in the process of industrial process control and technical measurement, the mechanical pressure gauge is more and more widely used because the elastic sensitive element has high mechanical strength and convenient production characteristics.

Warranty	2 years
Customized support	OEM, ODM, OBM
Place of Origin	China
	Shaanxi
Brand Name	XINYIYB
Model Number	YB-150
Product Name	Pressure Gauge
Connection	1/2'' NPT/1/4"NPT 3/8"NPT BSP
Pressure range	0-0.1-60Mpa
Application	Pressure Measurement

Specifications
Design
ASME B40.100 & EN 837-1
Sizes
2”, 2½” & 4” (50, 63 & 100 mm)
Accuracy class
2” & 2½”: ± 2/1/2% of span (ASME B40.100 Grade A)
4”: ± 1% of span (ASME B40.100 Grade 1A)
Ranges
Vacuum / Compound to 200 psi (16 bar)
Pressure from 15 psi (1 bar) to 15,000 psi (1000 bar)
Pressure from 15 psi (1 bar) to 10,000 psi (690 bar) - 2” size
or other equivalent units of pressure or vacuum
Working pressure
2 & 2½”: Steady: ¾ full-scale value
Fluctuating: 2/3 full-scale value
Short time: full-scale value
4”: Steady: full-scale value
Fluctuating: 0.9 x full-scale value
Short time: 1.3 x full-scale value

Operating temperature
Ambient: -40°F to +140°F (-40°C to +60°C) - dry
-4°F to +140°F (-20°C to +60°C) - glycerine filled
-40°F to +140°F (-40°C to +60°C) - silicone filled
Medium: +140°F (+60°C) maximum
Temperature error
Additional error when temperature changes from reference
temperature of 68°F (20°C) ±0.4% of span for every 18°F
(10°K) rising or falling.
Weather protection
Weather tight (NEMA 4X / IP 66)

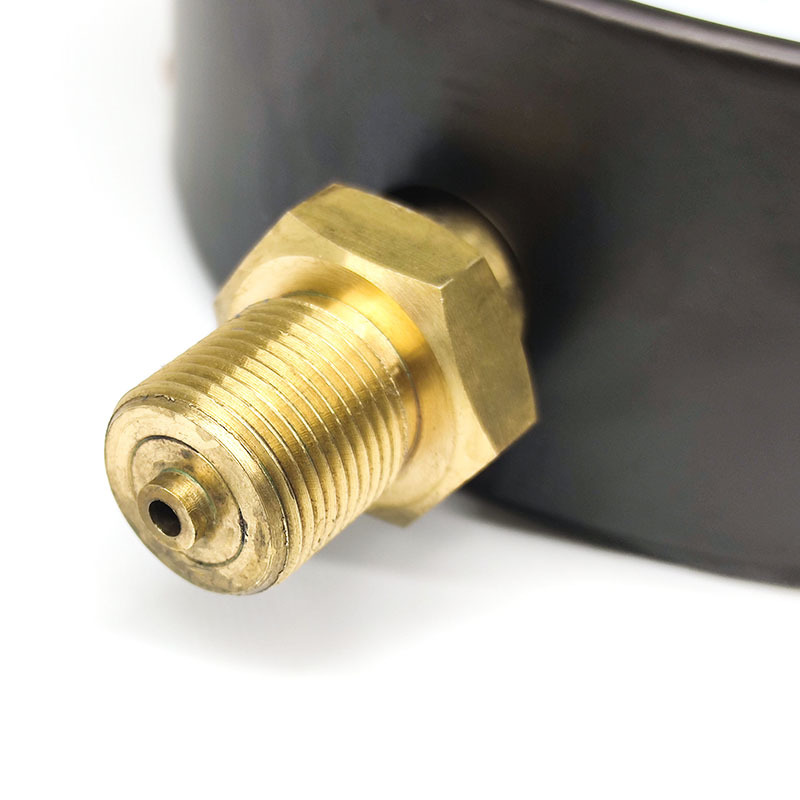

Pressure connection
Material: copper alloy
Lower mount (LM) or center back mount (CBM) - 2” & 2½”
Lower mount (LM) or lower back mount (LBM) - 4”⅛” NPT, ¼” NPT or ½” NPT limited to wrench flat areaABS (2”& 2½”) and white aluminum (4”)
