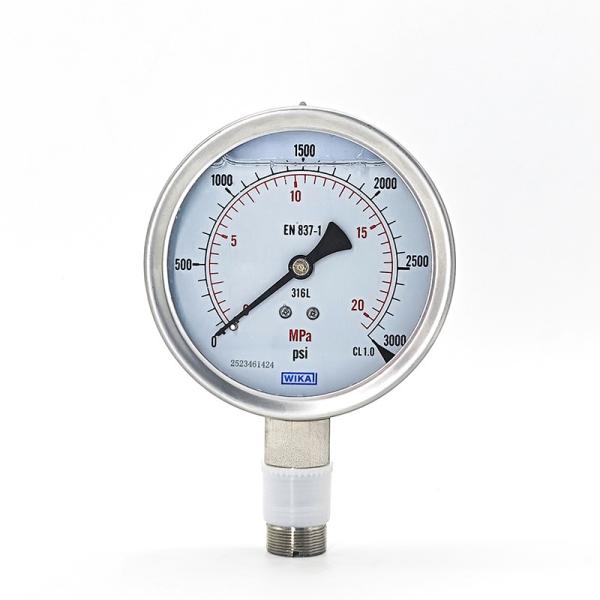

Original WIKA Electric Contact Pressure Gauge SS316 PGS23 Series

MOQ : 1 sets

Brand Name : wika

Model Number : 233.50

Place of Origin : Germany

Payment Terms : L/C,D/P,D/A,T/T,Western Union,MoneyGram

Supply Ability : 2000sets/week

Delivery Time : 6-10 work days

Packaging Details : carton 15*10*5cm

Product Name : WIKA Pressure Gauge / Electric Contact Pressure Gauge

warranty : 2 years

customized support : OEM, ODM, OBM

place of origin : Germany

brand name : WIKA

model number : 233.50

type : Digital Pressure Gauges

material : SS316

size : 100mm

weight : 1kg

Measuring range : 0-25 Bar

Size : 63 / 100/160 mm

Accuracy : Class 1.6 / 1.0

Connection type : thread

Material : Material SS316

Ambient temperature : -40 - (+60 °C)

Unit : bar/ psi/ kg/cm²/ kPa/ MPa

Contact Now

New And Original WIKA Electric Contact Pressure Gauge PGS23 Series New In Stock
This high-quality Bourdon tube pressure gauge has been designed especially for the process industry. The use of high-quality stainless steel materials and the robust design are geared to applications in the chemical and process engineering industries. Thus the instrument is suitable for liquid and gaseous media, also in aggressive
environments.
Scale ranges of 0 … 0.6 to 0 … 1,600 bar [0 ... 10 to 0 ... 20,000 psi] ensure the measuring ranges required for a wide variety of applications.
Specifications
Type of measuring element Bourdon tube, C-type or helical type
Material Stainless steel 1.4404 (316L)
Leak tightness ■ Helium tested, leakage rate: < 5∙10-3 mbar l/s
■ Helium tested, leakage rate: < 1∙10-6 mbar l/s
Accuracy class
NS 63 [2 ½"] ■ EN 837-1 Class 1.6
■ ASME B40.100 ±2 % │ ±1 % │ ±2 % of measuring span (grade A)
NS 100 [4"], 160 [6"] ■ EN 837-1 Class 1.0
■ ASME B40.100 ±1 % of measuring span (grade 1A)
Temperature error On deviation from the reference conditions at the measuring system:
≤ ±0.4 % per 10 °C [≤ ±0.4 % per 18 °F] of full scale value
Ambient temperature +20 °C [+68 °F]

Special features

■ Excellent load cycle stability and shock resistance
■ With case filling (model 233.50) for applications with high dynamic pressure loads and vibrations
■ Completely from stainless steel
■ Scale ranges from 0 … 0.6 to 0 … 1,600 bar or 0 ... 10 to 0 ... 20,000 psi
■ QR code on dial links to instrument-specific information

Applications
■ For gaseous and liquid aggressive media that are not highly viscous or crystallising, also in aggressive environments
■ Chemical and petrochemical industries, oil and gas industry, power engineering and also water and wastewater technology
■ Machine building and general plant construction

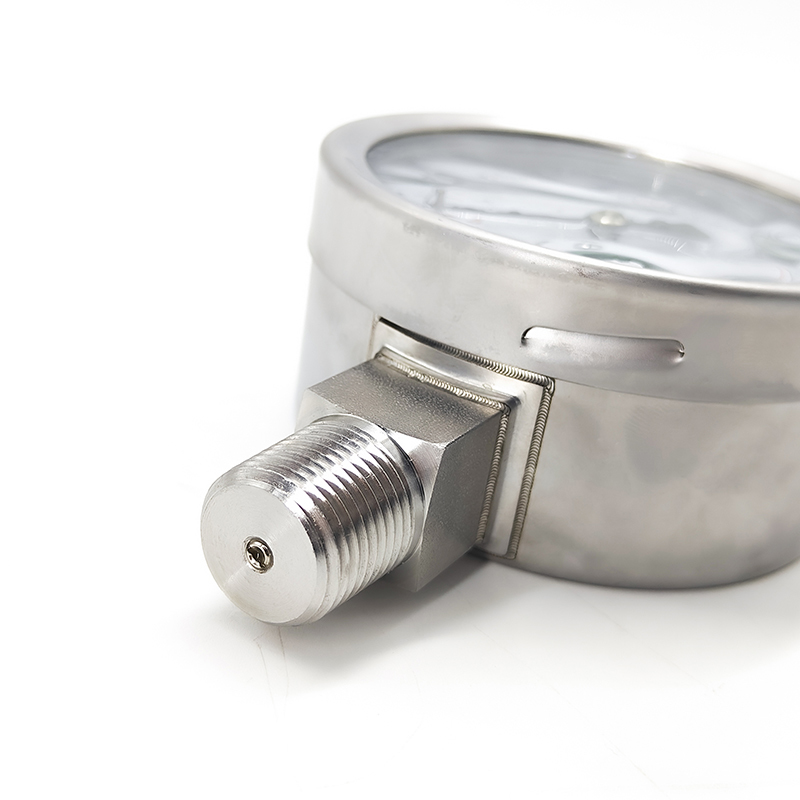

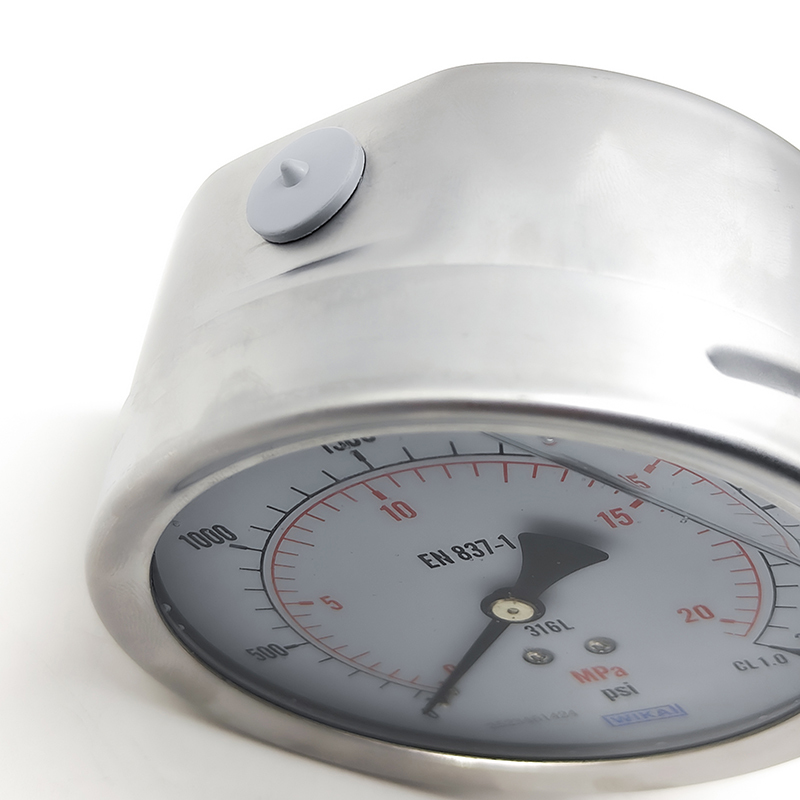

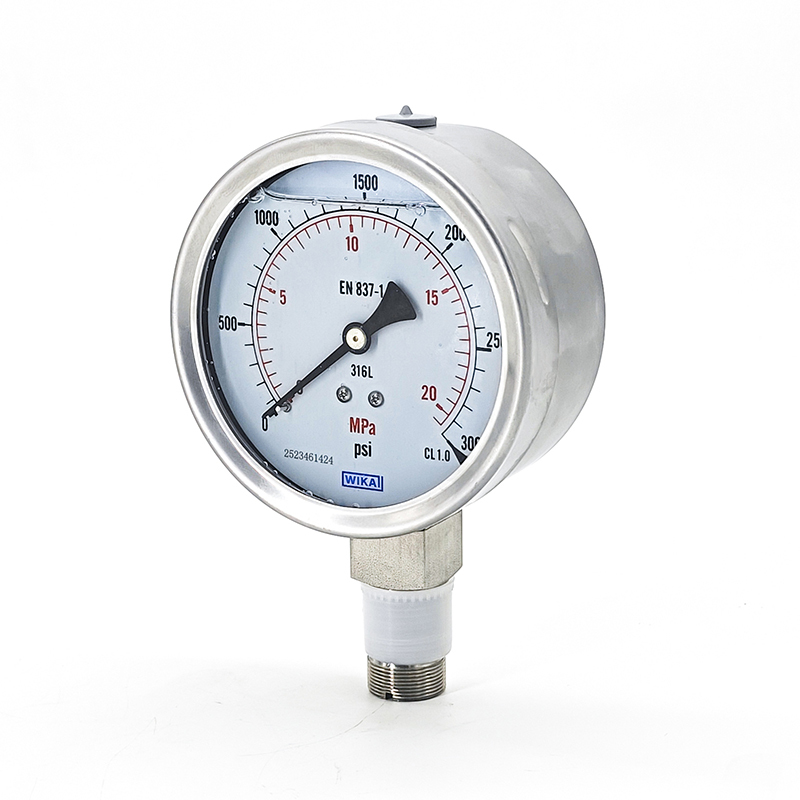

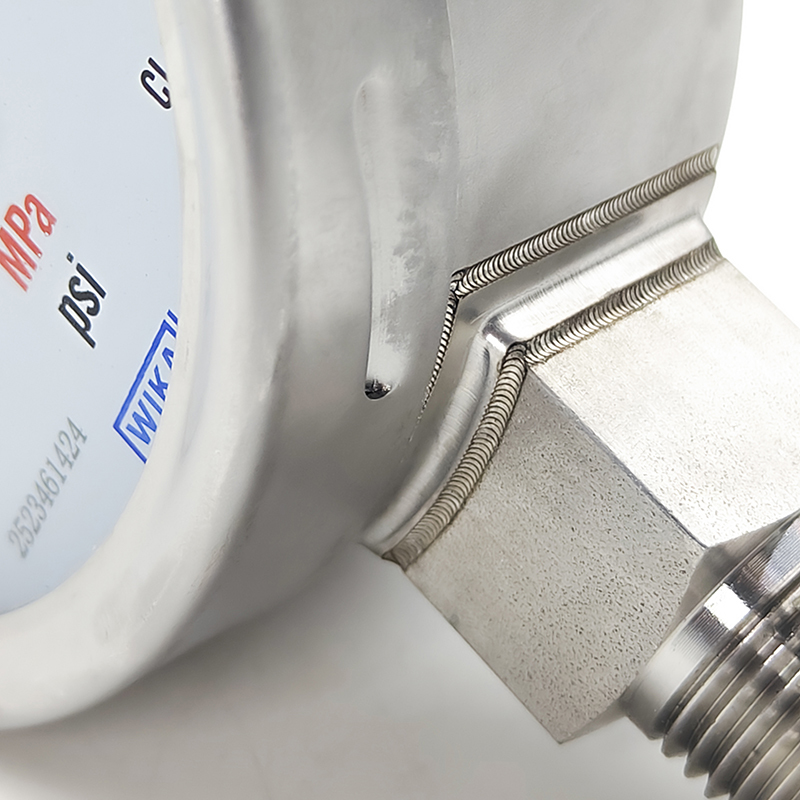

Original WIKA Electric Contact Pressure Gauge SS316 PGS23 SeriesOriginal WIKA Electric Contact Pressure Gauge SS316 PGS23 SeriesOriginal WIKA Electric Contact Pressure Gauge SS316 PGS23 SeriesOriginal WIKA Electric Contact Pressure Gauge SS316 PGS23 Series
