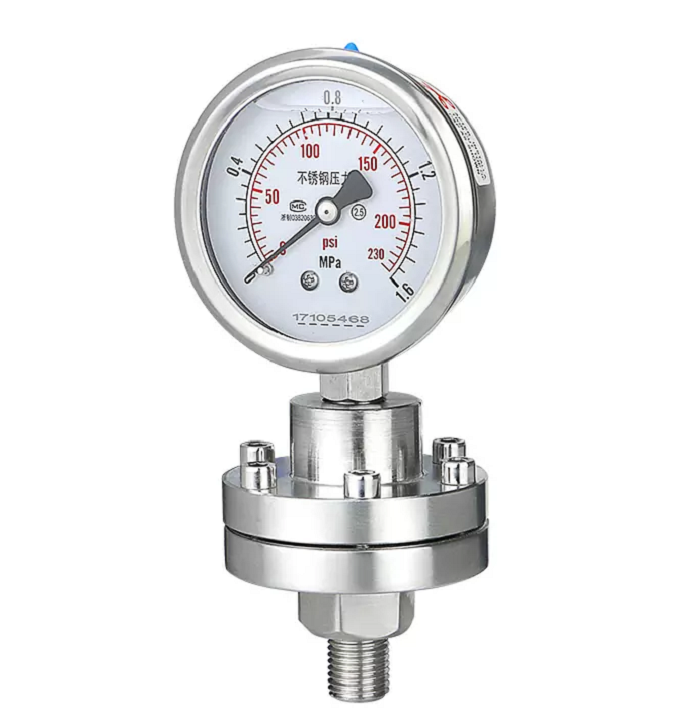

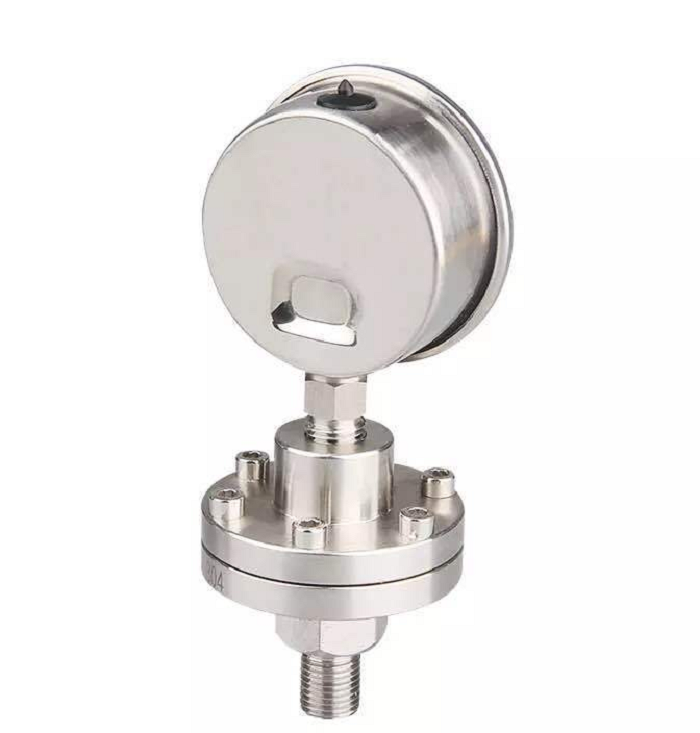

YTP-100 SS Pressure Gauge Shock Resistant 100mm 150mm Diaphragm Pressure Gauge

Price : CN¥401.76-452.89/pieces

type : Digital Pressure Gauges

Name : SS Pressure Gauge

customized support : OEM, ODM, OBM

brand name : XINYI

model number : YTP-100/150

material : Stainless Steel

size : 100mm/150mm

place of origin : Shaanxi, China

weight : 1 kg

housing : plain carbon steel

Operating temperature : -40-+80℃

Diaphragm Material : hastelloy alloy

ambient temperature : -40-70(℃)

Contact Now

YTP-100 Stainless Steel Shock Resistant Pressure Gauge For -40-70C Ambient Temperature Conditions

Product Description

Diaphragm corrosion-resistant pressure gauge: suitable for measuring the positive and negative pressures of high viscosity, easily crystallized, easily solidified liquids, and corrosive media. Mainly used for measuring the pressure of fluid media in industrial sectors such as petrochemical, alkali making, chemical fiber, dyeing, pharmaceutical, food, and cheese making. Sanitary diaphragm pressure gauge: It has the advantages of quick and convenient installation and disassembly, easy cleaning, non pollution,beautiful cleaning, safety and reliability. It can be widely used in industries such as pharmaceuticals, food, catering, water treatment, etc. Remote diaphragm pressure gauge: used for remote measurement of pressure in highly corrosive, viscous, high-temperature, and easily crystalline media. Choosing a low temperature resistant filling isolation liquid instrument can be used in low temperature situations and has anti freezing performance.

YTP-100 SS Pressure Gauge Shock Resistant 100mm 150mm Diaphragm Pressure Gauge

Specification

item	value
Warranty	2 years
Customized support	OEM, ODM, OBM
Place of Origin	China
	Shaanxi
Brand Name	XINYI
Model Number	YTP-100/150
housing	plain carbon steel
Operating temperature	-40-+80℃
Diaphragm Material	hastelloy alloy
ambient temperature	-40-70(℃)

Connection method	Direct Attach	damper	radiator	Angular connection	Hard pipe connection	Hose connection
medium temperature	≤80℃	≤150℃	≤300-500℃	≤150℃	≤300-50℃	≤500℃
ambient temperature	≤70℃	≤70℃	≤70℃	≤70℃	≤70℃	≤70℃
ambient humidity	≤80%	≤80%	≤80%	≤80%	≤80%	≤80%

Sealing fluid	medium temperature	Density (g/cm)	volume expansivity	usage
High occupancy viscosity silicone oil	-10-270℃	1.07	0.95*10-3	For high-temperature use
Low viscosity silicone oil	-30-250℃	0.94	1.08*10-3	General use
Glycerin aqueous solution	-5-100℃	1.27	0.61*10-3	Food use
vegetable oil Fluoro oil	-5-100℃	0.93	1.03*10-3	Food use
vegetable oil Fluoro oil		‘-30-50℃	1.93	0.75*10-3	Hydrogen and oxygen use
ethylene glycol	’-60/40-150℃	1.113		low temperature

Temperature Effect

Due to the fact that the diaphragm gauge is filled with sealing liquid as the medium for transmitting pressure, the temperature expansion coefficient of the sealing liquid increases the temperature of the pressure part of the pressure gauge. The temperature influence is related to the expansion coefficient of the sealing liquid, the stiffness of the diaphragm gauge, and the temperature of the pressure part, especially for low range pressure instruments. The temperature error of the general pressure part is not more than 1%/℃. Therefore, the total temperature impact of diaphragm pressure instruments is generally determined by the sum of the temperature of the pressure instrument and the temperature of the pressure part of the diaphragm device. Impact of liquid level difference: For diaphragm pressure gauges or low-pressure pressure gauges with hose and hard pipe connections, the impact of liquid level difference should be subtracted during installation.
