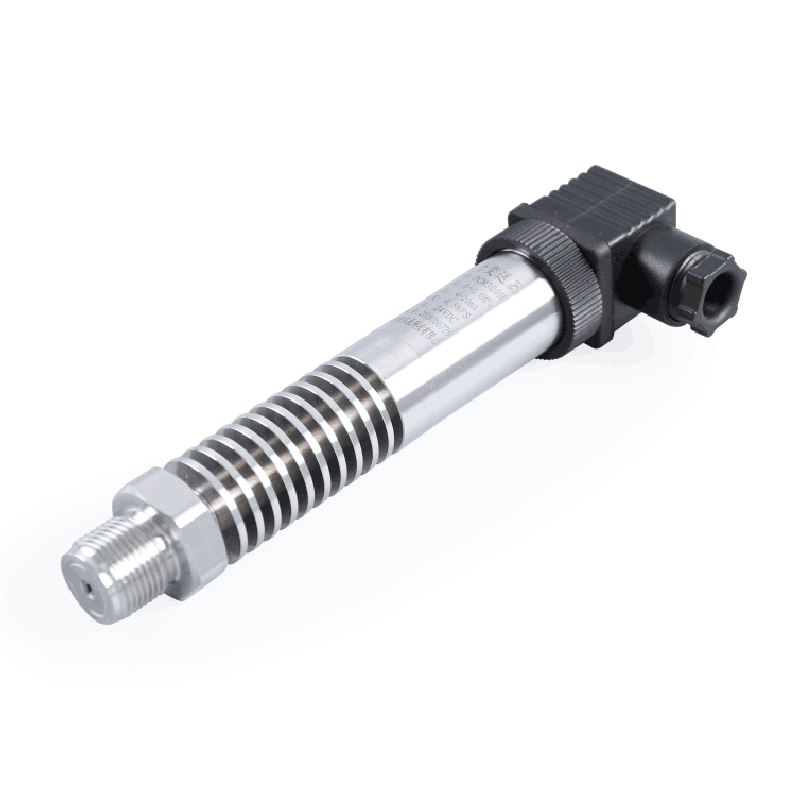

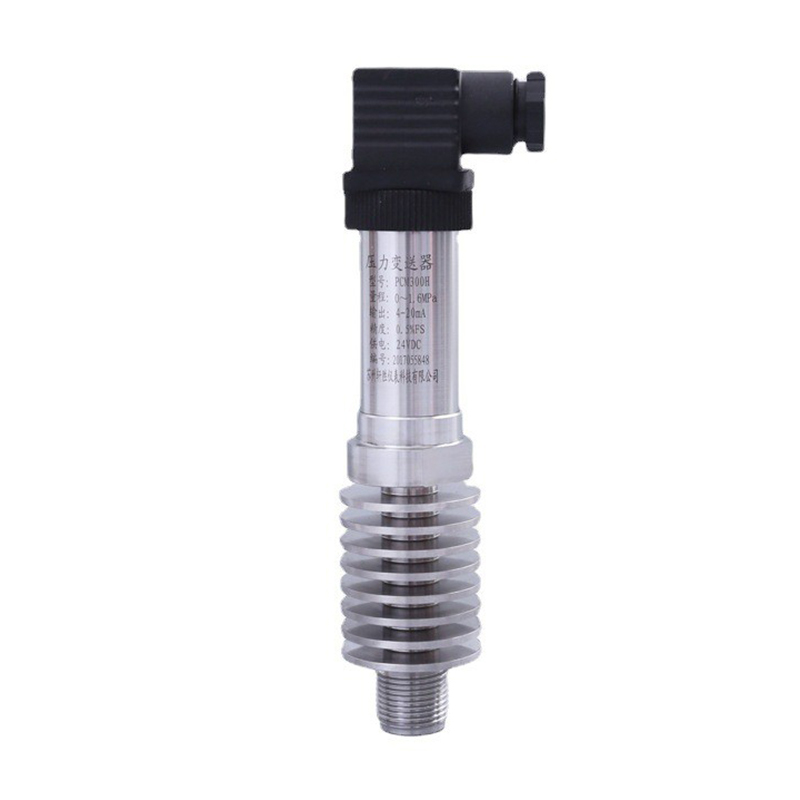

High Temperature Pressure Sensor Transmitter YW-130H Rod Shaped

Name: High Temperature Pressure Sensor Transmitter YW130H Rod Shaped
Brand: XINYIYB
Price: 1 USD

High Temperature Pressure Sensor Transmitter YW-130H Rod Shaped Manufactures

Price : Discuss

Brand Name : XINYIYB

Model Number : YW-130H

Certification : CE,Exiall CT6 Ga,ATEX.RoHS

Place of Origin : China

MOQ : 1

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability : 1000pcs/month

Delivery Time : 6-10 work days

Packaging Details : carton 10*5*5cm

Name : High Temperature Pressure Sensor

customized support : OEM, ODM, OBM

place of origin : Shaanxi

brand name : XINYIYB

warranty : 1 Year

model number : YW-130H

type : Pressure Transmitter

material : SS

Product Name : Pressure Transmitter

Pressure range : -100kPa~0...0~10kPa...100MPa

Pressure type : Gauge Pressure Absolute Pressure Sealed Pressure

Process connection : M20*1.5/ G1/2

Output : 4-20mA/0-5V/0-10V

Accuracy : 0.2%, 0.5%

Medium Temperature : -40℃~80℃

Protection : IP65

Ompensation temperature(°C) : 0~80 °C

Contact Now

YW-130H High-Quality Rod-Shaped High-Temperature Pressure Sensor

YW-100G series pressure transmiter pressure-sensitive core adopts high-performance silicon piezoresistivepressure filling core. The intenal ASIC, converts the sensor millivolt signal into standard voltage. current orfrequency signal., which can be directly connected with a computer interface card, control instrument, intelligentinstrument or PLC. The current output mode can be used for distance transmission.
It has a small volume. lightweight, all stainless steel sealing structure and can work in a corrosive environment.The product is easy to install and has high anti-vibration and anti-impact performance. It is widely used in processcontrol. aviation, aerospace, automobile, medical equipment, HVAC and other fields.

range	0~1 bar...2000 bar optional
Output	4~20mA ,0~5V/1~5V10.5~4.5V
Power supply	12VDC~30VDC
Accuracy	0.5%FS; 1%FS optional
Pressure port	M20X1.5 male or by customized
Electronic Port	DIN Hirschman or directly cable lP67
Working temperature	-10°C~+125°C,-60°C~+200°C
Temp Compensation	0~85°C;0°C~100°C(customized)
Zero Temp Drift	0.03%FS/C(≤100kPa),0.02%FS/°C(>100kPa)
Overoad	200%FS
Burst Overload	400%FS
Cooling device	with cooling device for max 125°C or 200°C
Certificate	CE,Exiall CT6 Ga,ATEX.RoHS
